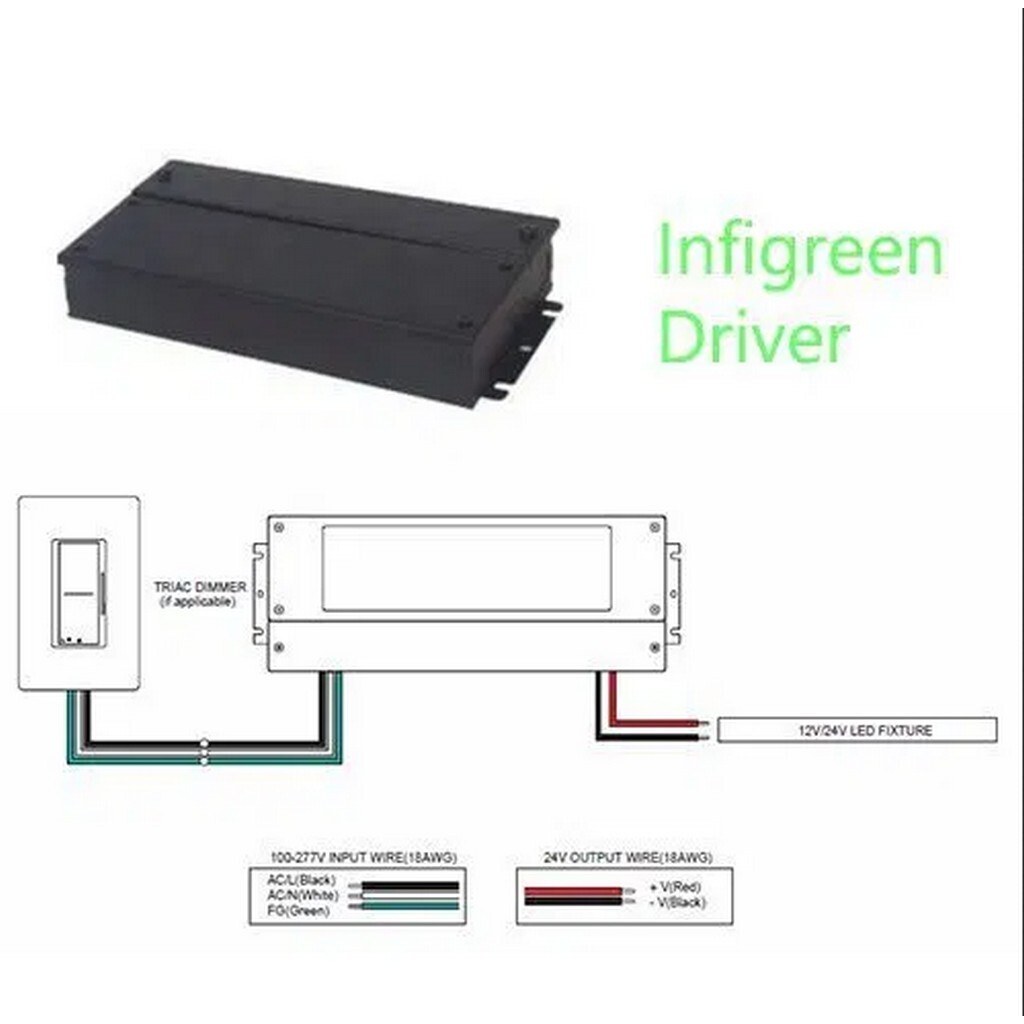

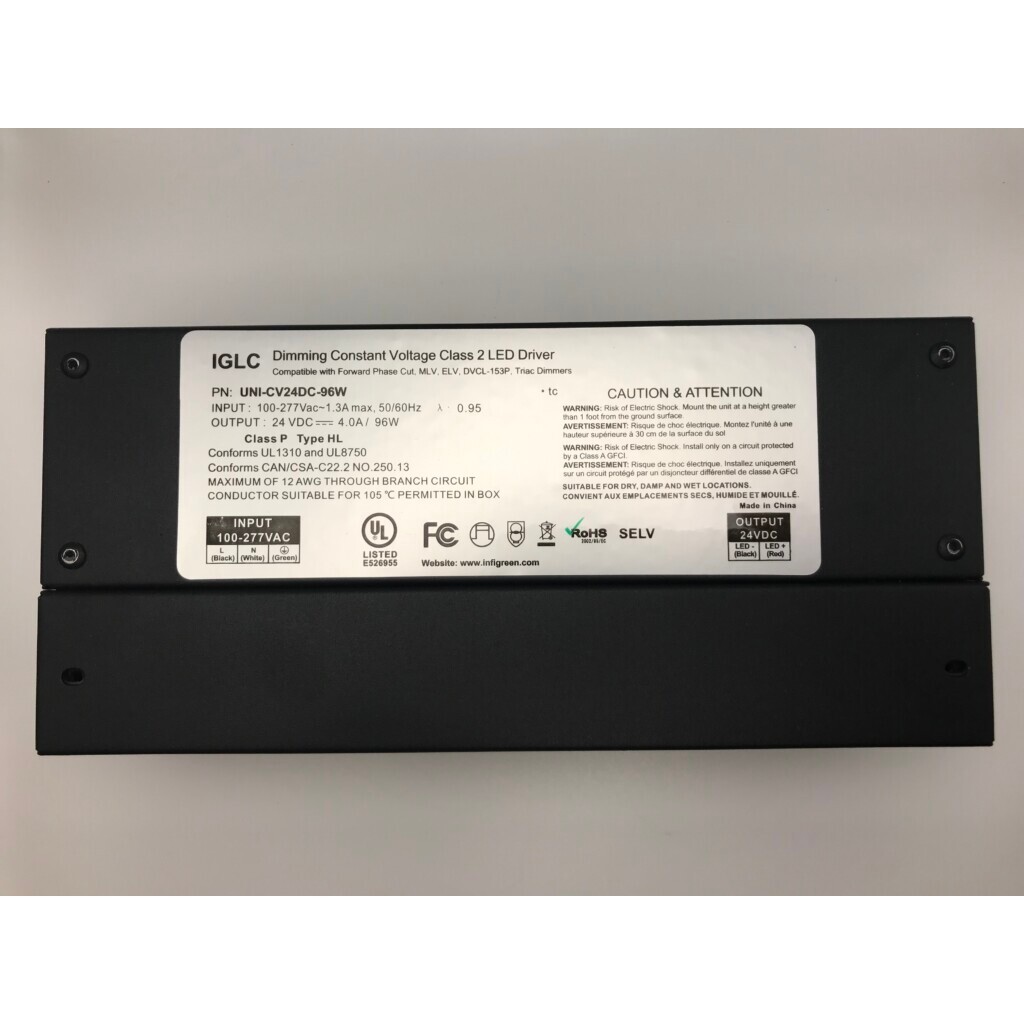

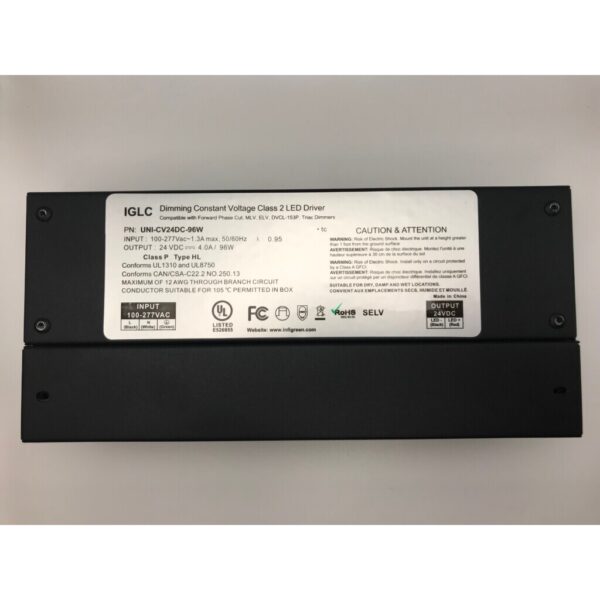

The INFINITY GREEN unique power supply UNI-CV24DC series is one AC/DC constant voltage mode single output LED power supply. It accepts the range input 100-277VAC and provides four models with different output current, that the small wattage LED applications employ the most frequently. Exploiting Class II design and adopting the 94V-0 flame retardant metal enclosure, UNI-CV24DC-XX ideally fits the entry-level LED applications.
Constant Voltage Design, Class II Power Unit, Protection: Short Circuit, ETL Listed, Only for Dry Location, 100% Full Load Burn-in Test, 100-277VAC/60Hz Input, Suitable for damp location, Low Cost/High Reliabilities, Compatible with ELV, MLV, Triac Dimming, 3 Year Warranty
| Model | Specification | UNI-CV24DC-30 | UNI-CV24DC-60 | UNI-CV24DC-96 | UNI-CV24DC-200 | UNI-CV24DC-300 |
| Output | Rated Voltage | 24V | 24V | 24V | 24V | 24V |
| Operating Range | 0-2500mA | 0-2500mA | 0-4000mA | 0-8000mA | 0-12,000mA | |
| Rated Power | 60W | 60W | 96W | 192W | 288W | |
| Voltage Accuracy | ±5% | ±5% | ±5% | ±5% | ±5% | |
| Input | Voltage Range | 100-277VAC | 100-277VAC | 100-277VAC | 100-277VAC | 100-277VAC |
| Efficiency | 83% | 83% | 83% | 83% | 83% | |
| AC Current Range | 0-500mA | 0-500mA | 0-800mA | 0-1600mA | 0-2400mA | |
| Dimension | 6-¾” (L) x 3-¾” (W) x 1-¾” (H) | 7”(L) x 3-¾”(W) x 1-½” x (H) | 8”(L) x 3-¾”(W) x 1-½” x (H) | 10-½”(L) x 4”(W) x 1-½” x (H) | 11-½”(L) x 4”(W) x 1-½” x (H) | |
| Protection | Short Circuit: Hiccup Mode, Recover automatically after fault condition is removed. | |||||
